Gates Operator Systems and Accessories offered by Metro Door and Dock.

Gates Operator Systems and Accessories

LiftMaster offers a full line of electric gate openers for swing and sliding gates.

  • Swing Gate Openers

  • Sliding Gate Operators

  • Underground (concealed) Operators

  • Hydraulic vs. Electromechanical Drives

  • Solar-powered Systems

  • Remote controls (multi-button, rolling code)

  • Wireless keypads and intercom stations

  • Photo-electric safety sensors and safety edges

  • Backup batteries or UPS for power outages

  • Solar panels and charge controllers

  • Gate operator mounting kits and structural reinforcements

LiftMaster Sliding gate operators require a custom configuration. Contact us for an estimate at 888-215-7500.

LiftMaster High Traffic Commercial Sliding Gate Operators

LiftMaster High Traffic Commercial Sliding Gate Operators offered by Metro Door and Dock.

The LiftMaster 24VDC high-traffic commercial slide gate operator contains everything you need to get set up. It’s meant for high-traffic commercial applications, and can support continuous use day-to-day.

Technical Specs

  • Power: 120V/230V Single Phase.

  • Accessory Power: 24VDC 500mA output. Switched and unswitched power.

  • Monitored Safety Inputs: 3 mainboards, 3 optional expansion boards

  • Temperature Specifications: Without Heater: -4 degrees F (-20 degrees C) to 140 degrees F (60 degrees C); With Optional Heater (HTR): -40 degrees F (-40 degrees C) to 140 degrees F (60 degrees C)

  • UL Usage Classification: I, II, III, and IV

  • Gate Travel Speed: Approximately 12 Inches Per Second

Sliding gate operators require a custom configuration.
Contact us for an estimate at 888-215-7500.

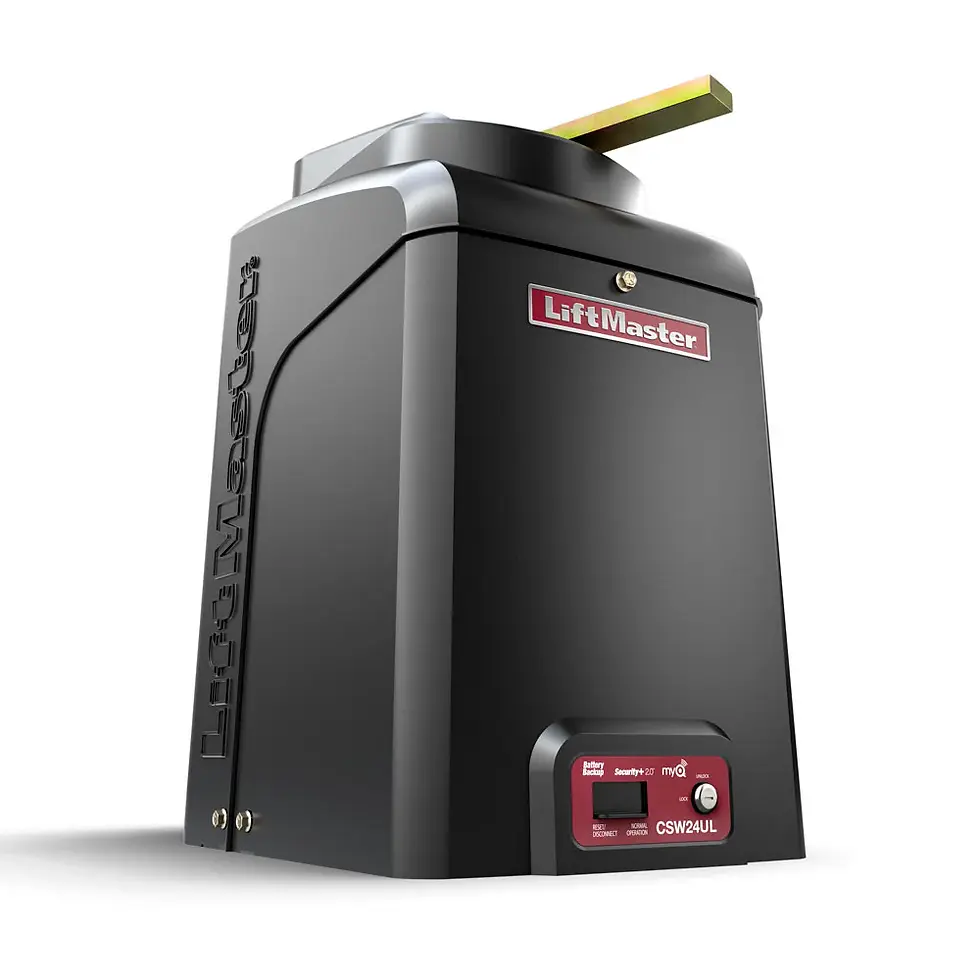

LiftMaster High Traffic Commercial Swing Operator

LiftMaster High Traffic Commercial Swing Operator offered by Metro Door and Dock.

This is LiftMaster’s most recent version of this model (previously CSW24U), which is now UL325 Compliant. To be UL325 Compliant, it is mandatory for each swing gate opener/motor/operator to have at least one functioning SAFETY DEVICE. Therefore, LiftMaster’s new control board and improved photo eye sensor (Model LMRRUL) are included (with protective hoods) at no additional cost.

Technical Specs

  • Motor: 24VDC Continuous Industrial-Duty

  • Operator Duty Rating: High-cycle, high-temperature commercial duty

  • Worm Gear Reduction: 2 commercial oil-bath gearboxes providing 900:1 Reduction

  • Power: 120/230VAC Single-Phase

  • Three-Phase Conversion Option: 3PHCONV converts input voltage of 208/230/460/575VAC to an output voltage of 120VAC

  • Accessory Power: 24VDC 500mA Max.

  • Solar: Compatible application dependent on region

  • Chassis: Constructed with 1/4 in. gold zinc-plated steel for rust prevention

  • Enclosure/Cover: high-density, UV-resistant polycarbonate 2-piece for heat and corrosion resistance

  • UL® Usage Classification: I, II, III, and IV

  • Temperature Specifications: Without Heater: -4°F (-20°C ) to 140°F (60°C); With Heater Option: (HTR) -40°F (-40°C ) to 140°F (60°C)

  • Gate Travel Speed: Opens 90° in 13-15 seconds

  • Recommended Capacities: Rated for gates up to 18 ft. in length or weighing up to 1,600 lbs

  • Battery Backup: 146 Cycles

  • Monitored Safety Inputs (Color Coded): 6 Inputs (Main and Expansion Board)

  • Standby Power: Up to 24 days

  • Operator Weight: 206 lbs.

  • Dimensions (HxWxD): 27.99” x 19.63” x 15.55”

Swing gate operators require a custom configuration.
Contact us for an estimate at 888-215-7500.
